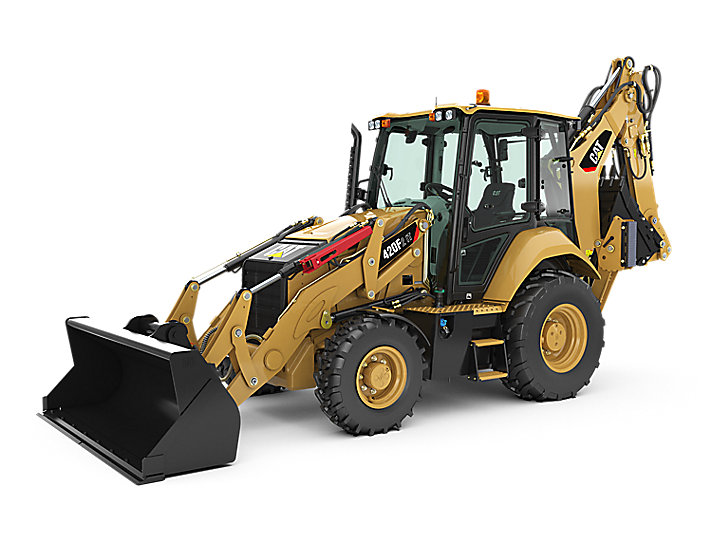

Caterpillar 420 F2

  Daily Weekly Monthly
Reg
$600
$2,350
$7,550
Corp
$550
$2,150
$7,150
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

Cat Backhoe Loaders are extremely versatile machines. The ergonomic, automotive style operator station helps you work comfortably and productively all day long. The excavator-style boom is built for optimum performance and durability. The curved design provides added clearance when digging over obstacles or loading trucks, while the the front loader arms deliver more reach, dump height and breakout. The CAT 420 F2 provides superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to:

  • General Construction

  • Demolitions and Excavations

  • Landscaping

  • Breaking Asphalt and Paving

  • Digging holes and trenches

  • Loading heavy material

  • Breaking asphalt

  • Paving roads

  • Transplanting trees

  • Removing tree stumps

  • Clearing bushes

  • Clearing small debris from dirt piles

  • Smoothing an uneven surface

  • Carrying heavy tools

The CAT 420 F2 provides precice handling in tight or confined operating areas. The small size and versatility of the machine helps to improve your productivity and lower your operating costs.

Engine

Engine Model Cat  C4.4 ACERT
Model   4024T
Gross Power  76kW 102hp
Net Power @2200 RPM 69kW 93hp
Displacement 127mm 5 inches
Emission Standards Tier 4  Final











Dimensions

Operating Weight - Minimum 7,726kg 17,033lb
Operating Weight - Maximum 11,000kg 24,251lb
Overall Transport Length 7169mm 23'6''
Overall Transport Height 3577mm  11'9''
Overall Transport Width 2322mm 7'7"
Backhoe Digging Depth 4360mm 14'4"
Backhoe Load Height 3642mm 11'11''
Loader Bucket Digging Depth 105mm 4"
Loader Bucket Dump Height Max 2679mm 8'9"

Backhoe & Loader Capacity

Loader Bucket Lift Capacity 3283kg 7,237lbs
Loader Bucket Lift Breakout Force 49,809N 11,197lbf
Loader Bucket Capacity  .96m3 1.25yd3
Backhoe Bucket Lift Capacity  1,621kg 3,573lbs
Backhoe Bucket Capacity 120L 4.2ft
