| Engine | ||
| Make | Isuzu | |
| Model | AI-4HK1XYSA-02 | |
| Net Power | 159 hp | 119 kw |
| Power Measured @ | 2000 rpm | |
| Displacement | 325 cu in | 5.2 L |
| Aspiration | Turbocharged and intercooled | |
| Number of Cylinders | 4 | |
| Operational | ||
| Operating Weight | 53936 lb | 24465 kg |
| Fuel Capacity | 84.5 gal | 320 L |
| Cooling System Fluid Capacity | 6.9 gal | 26 L |
| Hydrauilc System Fluid Capacity | 60.8 gal | 230 L |
| Engine Oil Capacity | 6.1 gal | 23 L |
| Swing Drive Fluid Capacity | 1.8 gal | 6.9 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 50 amps | |
| Hydraulic System Relief Valve Pressure | 4980 psi | 34336 kPa |
| Hydraulic Pump Flow Capacity | 112 gal/min | 424 L/min |
| Swing Mechanism | ||
| Swing Speed | 13.3 rpm | |
| Swing Torque | 50662 lb ft | 68900 Nm |
| Undercarriage | ||
| Number of Shoes per Side | 49 | |
| Shoe Size | 32 in | 800 mm |
| Number of Carrier Rollers per Side | 2 | |
| Number of Track Rollers per Side | 8 | |
| Ground Pressure | 5.5 psi | 38 kPa |
| Max Travel Speed | 3.4 mph | 5.5 km/h |
| Drawbar Pull | 45636 lb | 203 kN |
| Track Gauge | 9.2 ft in | 2790 mm |
| Buckets | ||
| Reference Bucket Capacity | 1.1 yd3 | 0.83 m3 |
| Minimum Bucket Capacity | 0.78 yd3 | 0.6 m3 |
| Maximum Bucket Capacity | 1.4 yd3 | 1.1 m3 |
| Boom/Stick Option (HEX) 1 | ||
| Boom/Stick Option (HEX) 1 | Arm Length 7ft. 11in. 2.42m | |
| Shipping Height of Unit | 10.5 ft in | 3200 mm |
| Shipping Length of Unit | 32 ft in | 9740 mm |
| Max Digging Depth | 20.4 ft in | 6210 mm |
| Max Reach Along Ground | 30.6 ft in | 9320 mm |
| Max Cutting Height | 34.7 ft in | 10560 mm |
| Max Loading Height | 25.1 ft in | 7640 mm |
| Max Vertical Wall Digging Depth | 17.2 ft in | 5230 mm |
| Boom/Stick Option (HEX) 2 | ||
| Boom/Stick Option (HEX) 2 | Arm Length 9ft.7in. 2.91m | |
| Shipping Height of Unit | 9.8 ft in | 2980 mm |
| Shipping Length of Unit | 31.6 ft in | 9620 mm |
| Max Digging Depth | 22 ft in | 6700 mm |
| Max Reach Along Ground | 32.3 ft in | 9830 mm |
| Max Cutting Height | 36 ft in | 10980 mm |
| Max Loading Height | 26.4 ft in | 8050 mm |
| Max Vertical Wall Digging Depth | 19.4 ft in | 5920 mm |
| Dimensions | ||
| Width to Outside of Tracks | 10.5 ft in | 3200 mm |
| Height to Top of Cab | 9.8 ft in | 2950 mm |
| Ground Clearance | 1.5 ft in | 450 mm |
| Counterweight Clearance | 3.2 ft in | 975 mm |
| Tail Swing Radius | 5.5 ft in | 1680 mm |
| Length of Track on Ground | 12 ft in | 3660 mm |
John Deere 225 D LC
| Daily | Weekly | Monthly | |
|---|---|---|---|
| Reg |
$725
|
$2,900
|
$9,300
|
| Corp |
$600
|
$2,500
|
$8,500
|
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

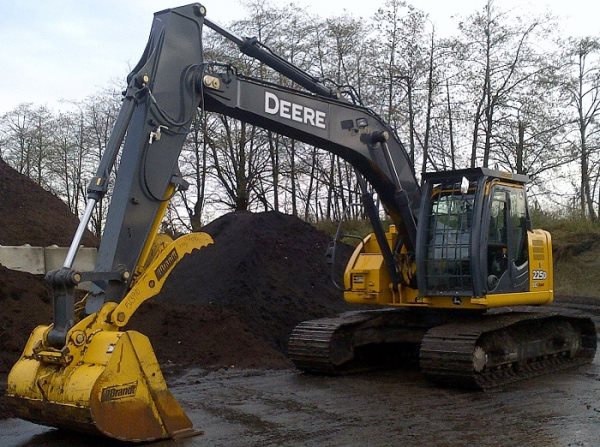

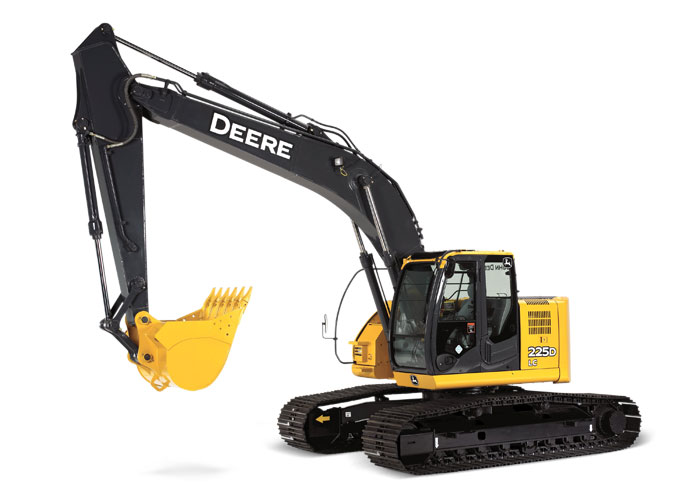

John Deere 225D LC Excavator available for rent from Rent1
Demolition ready excavator rentals: when you rent a John Deere 225D LC from Rent1, it has the option to attach a cab guard and a hydraulic thumb.
Power: The John Deere 225D LC excavator rental uses an Izuzu AI-4HK1XYSA-02 engine, netting 159hp (119kw) of power. 4 cylinders with a turbocharged intercooled engine makes this excavator a solid choice.
Versatile: The John Deere 225D LC can handle most jobs thrown at it for a mid-range larger excavator. A max diggin depth of 22 feet, and a total width of 10.5 feet, this excavator is both powerful and compact.
What can you do with a John Deere 225D LC excavator rental?
- Larger commercial or residential structure demolition
- Dig up sewage pipes or electrical conduit
- Break up large areas of concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Remove larger trees or stumps
- Load sand and gravel
We provide quick delivery on excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.
