Got a lot on your plate? Dig in.

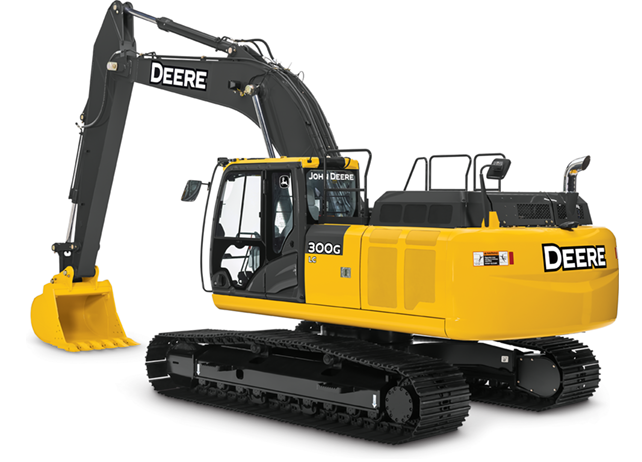

If you need to serve up more productivity, the 300G LC Excavator has an insatiable appetite for work. Loaded with a rugged EPA Final Tier 4 (FT4)/EU Stage IV PowerTech™ diesel engine, the 300G LC Excavator will fast-track your bottom line. Meeting stringent emission standards, this machine delivers the best combination of performance, efficiency, and reliability without sacrificing power or torque. Optimized hydraulics yield more muscle, so you can get in, get done, and get on to the next job. Even with its extra ability, this excavator doesn't compromise the smooth control and multifunction capability that have become the trademarks of Deere excavators. And if you're hungry for even more productivity, add any of the many available options and pile even more on your plate.
| Emission Rating |
Tier 4 |
| Engine Manufacturer |
John Deere |
| Number Of Cylinders (Per Engine) |
6 |
| Displacement, ltr (Inches³) |
6.8 (415) |
| Rated speed, rpm |
1900 |
| Engine Output - Net, kW (hp) |
166 (223) |
| Number Of Carrier Rollers - Each Side |
2 |
| Number Of Track Rollers - Each Side |
8 |
| Track Shoe Width, mm (inches) |
800 (32) |
| Transport Length Mono Boom, mm (ft/in) |
10710 (35 ft 2 in) |
| Transport Height - Maximum, mm (ft/in) |
3380 (11 ft 1 in) |
| Overall Width, mm (ft/in) |
3390 (11 ft 1 in) |
| Track Length On Ground, mm (ft/in) |
4050 (13 ft 3 in) |
| Undercarriage Overall Length, mm (ft/in) |
4940 (16 ft 2 in) |
| Tailswing Radius, mm (ft/in) |
3250 (10 ft 8 in) |
| Ground Clearance, mm (inches) |
510 (20) |
| Width over standard tracks, mm (ft/in) |
3390 (11 ft 3 in) |
| Track Gauge, mm (ft/in) |
1990 (6 ft 6 in) |
| Ground Level Reach - Mono Boom, mm (ft/in) |
11090 (36 ft 5 in) |
| Dig Height - Mono Boom, mm (ft/in) |
10470 (34 ft 4 in) |
| Dump Height - Mono Boom, mm (ft/in) |
7540 (24 ft 9 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) |
7710 (25 ft 4 in) |
| Dig Depth - Mono Boom, mm (ft/in) |
7870 (25 ft 10 in) |
| Standard Dipper, mm (ft/in) |
3760 (12 ft 4 in)) |
| Fuel Tank, ltr (gallons (US)) |
514 (136) |
| Hydraulic Tank, ltr (gallons (US)) |
156 (41) |
| Voltage, V |
24 |
| Number Of Batteries |
2 |
| Ground Bearing Pressure, kPa (PSI) |
43.8 (6.35) |
| Slew Speed, rpm |
10.3 |
| Slew Torque, kNm (lbf / ft) |
90.5 (66749) |
| Travel Speed - High, kph (mph) |
5.2 (3.2) |
| Tractive Force, kN (lbf) |
246 (55303) |
| Dipper Tearout, kN (lbf) |
127 (28551) |
| Bucket Breakout, kN (lbf) |
202 (45411) |
| Gradeability, % |
70 |
| Main Pumps - Maximum Flow, lt/min (gallons (US) / min) |
472 (124.6) |
| End lift - 7.5m Reach, kg (lbs) |
7910 (17010) |
| Side lift - 7.5m Reach, kg (lbs) |
4660 (10020) |
| Bucket Pressure, bar (PSI) |
343 (4975) |
| Boost Pressure, bar (PSI) |
380 (5511) |
| Operating Weight, kg (lbs) |
31150 (68674)
|
