Komatsu PC 200 LC-8
| Daily | Weekly | Monthly | |
|---|---|---|---|
| Reg |
$725
|
$2,900
|
$9,300
|
| Corp |
$600
|
$2,500
|
$8,500
|

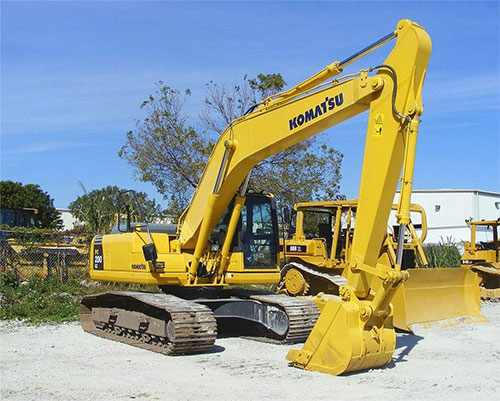

Komatsu's PC 200 LC Hydraulic Excavator Rental
First Look: Make - Komatsu, Model - PC 200 LC. Reach of 29 ' 1 " and max dig depth of 20 '. You can also rent our Komatsu HB 215 LC hybrid excavator that is a similar size but uses hybrid technology for fuel efficiency and meets environmental regulations. Other similiar excavtor rentals: Komatsu PC 228 USLC
Working Range and Conventional Tailswing Profile: 9 ' (2750 mm).
Power: 110 kW 148 HP (net).
Dig Depth & Reach: Dig depth - 20 '. Reach - 29 ' 1 ".
Dimensions: Komatsu PC 200 rental is 9 ft 2 inches wide, 28 ft 7 inches in length.
Operating Weight: With standard equipment the PC 200 LC rental weighs 24,675 kg (42,770 lb). The weight can vary slightly depending on attachments.
Visibility: The cab on the Komatsu 200 LC rental's cab is low noise with viscous cab mounting, preventing dust from entering.
Excavator Rental for Demolition: When renting a Komatsu PC 200 LC, we give you the option to equip it with a hydraulic thumb and full cab guarding for demolition purposes.
You can use a Komatsu PC 200 LC Excavator Rental for:
- Breaking down concrete with an attachment
- Excavating pipes and circuitry
- Loading gravel, sand, etc
- Trench digging and backfilling
- Demolition and debris removal
- Foundation digging
Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.
Engine
| Model | Komatsu SAA6D107E-1 | |
| Type | Water-cooled, 4-cycle, direct injection | |
| Aspiration | Turbocharged and aftercooled | |
| Number of cylinders | 6 | |
| Bore | 4.21'' | 107 mm |
| Stroke | 4.88'' | 124 mm |
| Piston displacement | 408 in³ | 6.69 ltr |
| Horsepower | ||
| SAE J1995 : Gross | 155 HP | 116 kW |
| ISO 9249/SAE J1349 : Net | 148 HP | 110 kW |
| Rated rpm | 2000 rpm | |
| Fan drive type | Mechanical | |
| Governor | All-speed control, electronic. | |
| EPA Tier 3 emissions ready. |
Hydraulics
Type - HydrauMind (Hydraulic Mechanical Intelligence New Design) closed-center system with load sensing valves and pressure compensated valves
| Number of selectable working modes | 5 | |
| Main pump: | ||
| Type | Variable displacement piston type | |
| Pumps for | Boom, arm, bucket, swing, and travel circuits | |
| Maximum flow | 116 U.S. gal/min | 439 ltr/min |
| Supply for control circuit | Self-reducing valve | |
| Hydraulic motors: | ||
| Travel | 2 x axial piston motor with parking brake | |
| Swing | 1 x axial piston motor with swing holding brake | |
| Relief valve setting: | ||
| Implement circuits | 5,400 psi | 380 kgf/cm²/ 37.3 MPa |
| Travel circuit | 5,400 psi | 380 kgf/cm² / 37.3 MPa |
| Swing circuit | 4,190 psi | 295 kgf/cm²/ 28.9 MPa |
| Pilot circuit | 470 psi | 33 kgf/cm² / 3.2 MPa |
| Hydraulic cylinders: | ||
| Number of cylinders | Bore x Stroke x Rod Diameter | Bore x Stroke x Rod Diameter |
| Boom / 2 | 5.1" x 52.5" x 3.5" | 130 mm x 1334 mm x 90 mm |
| Arm / 1 | 5.3" x 58.7" x 3.7" | 135 mm x 1490 mm x 95 mm |
| Bucket / 1 | 4.5" x 44.1" x 3.2" | 115 mm x 1120 mm x 80 mm |
Drives & Brakes
| Steering control | Two levers with pedals | |
| Drive method | Hydrostatic | |
| Maximum drawbar pull | 40,120 lb | 178 kN / 18200 kg |
| Gradeability | 35° | 70% |
| Maximum travel speed: (Auto-Shift) | ||
| High | 3.4 mph | 5.5 km/h |
| Mid | 2.5 mph | 4.1 km/h |
| Low | 1.9 mph | 3.0 km/h |
| Service brake | Hydraulic lock | |
| Parking brake | Mechanical disc brake |
Swing System
| Drive method | Hydrostatic | |
| Swing reduction | Planetary gear | |
| Swing circle lubrication | Grease-bathed | |
| Service brake | Hydraulic lock | |
| Holding brake/Swing lock | Mechanical disc brake | |
| Swing speed | 12.4 rpm | |
| Swing torque | 49,907 ft lbs | 6900 kg.m |
Undercarriage
| Center frame | X-frame | |
| Track frame | Box-section | |
| Seal of track | Sealed track | |
| Track adjuster | Hydraulic | |
| Number of shoes | 49 each side | |
| Number of carrier rollers | 2 each side | |
| Number of track rollers | 9 each side |
Coolant & Lubricant Capacity
| Fuel tank | 105.7 U.S. gal | 400 ltr |
| Coolant | 5.4 U.S. gal | 20.4 ltr |
| Engine | 6.1 U.S. gal | 23.1 ltr |
| Final drive | 0.9 U.S. gal | 3.3 ltr |
| Swing drive | 1.7 U.S. gal | 6.6 ltr |
| Hydraulic tank | 35.7 U.S. gal | 135 ltr |
Operating Weight (approx)
Operating weight, including 5700 mm / 18'8" one-piece boom, 2925 mm / 9'7" arm, SAE heaped 1.02 m³ / 1.34 yd³ bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Triple-Grouser Shoes | Operating Weight: | Ground Pressure |
| 28" / 700 mm | 46,643 lb 21157 kg |
5.48 psi 0.43 kg/cm² |
| 31.5' / '800 mm | 47,260 lb 21437 kg |
4.86 psi 0.38 kg/cm² |
