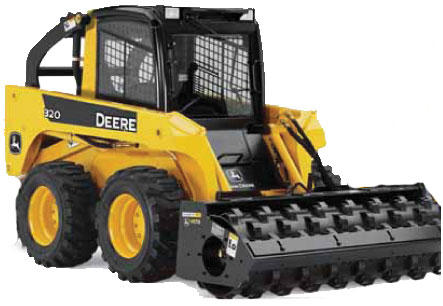

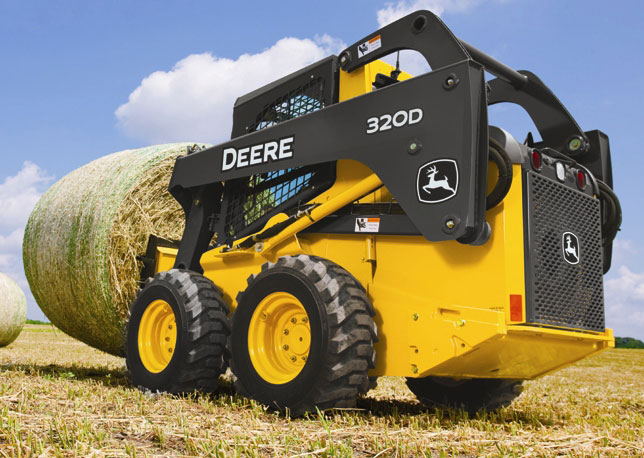

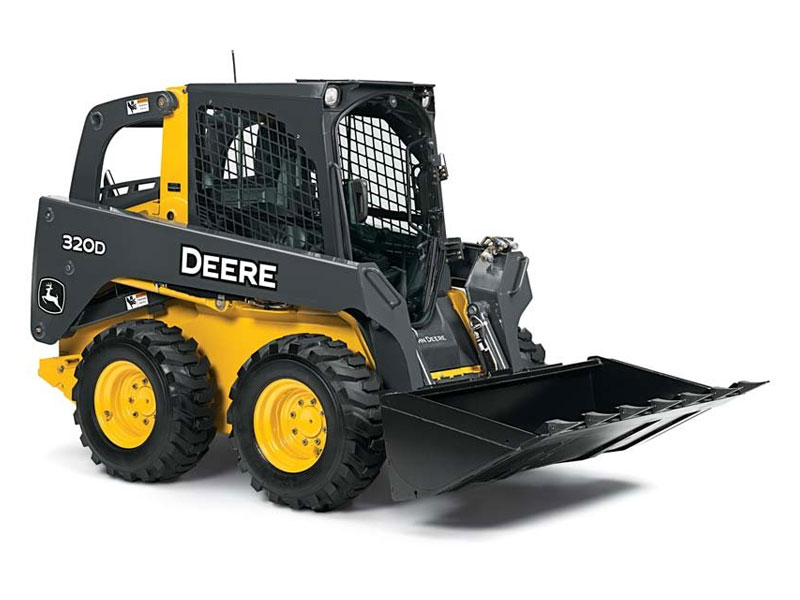

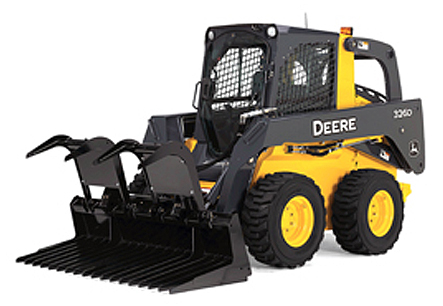

John Deere 320D
Daily | Weekly | Monthly | |
---|---|---|---|
Reg |
$290
|
$1,170
|
$3,420
|
Corp |
$240
|
$975
|
$2,850
|
The John Deere 320D Skid Steer is easy to transport between job sites, and is also very comparable in power to other skid steers around its size. The difference of the 320D skid steer from smaller models is a noted increase in power by over 10 hp to a power output of 47.1 kW (63 hp) @2300 rpm.
Compact: The 320D skid steer rental is small and compact. It's approximately 63 inches wide. The 320D manoeuvres confined areas and tight spots with ease. A 60/40 weight distribution allows these skid steers the stability required to handle heavy loads, work on steeper slopes and provide front-of-machine downforce.
Powerful: The 320D Skid Steer's Turbocharged 2.4L diesel engine delivers 47.1 kW (63 hp), allowing you to carry loads up to 2,000 lbs. (Tipping Load: 4,000 lbs.) - The engine offers a net power output of 47.1 kW (63 hp) @ 2300 rpm. The 320D uses an engine that is Interim Tier 4 emission certified. A 66 liter gas tank allows the 318D skid steer rental to function longer for more efficiency and fewer fillups.
Visibility: The John Deere 320D Skid Steer's superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters). The cab has a 360-degree visibility for uninterrupted viewing of the sides, above and below. A low-sloped rear hood allows easy visibility through the rear of the 320D.
Superior bucket angle: The 320D's 40-degree dump angle allows the bucket to empty all content (including sticky material). A 60/40 weight distribution throughout the machine lets it work with heavy loads on steeper terrain - this also allows for more down force in the front of the machine, vs the 70/30 weight distribution in competitor models.
Comfort: The sculptured high back seat will help you keep productivity high. It has the ability to automatically retract as well. Levers are placed in such a way so as to decrease effort required to use them. Also, all John Deere skid steers come with cargo storange for cell phones and small items, as well as a 12-volt power outlet. It also features a cupholder.
Reliability: When you rent a skid steer like the John Deere 320D you don't have to worry about performance and reliability. As an example, the 320D's heavy‐duty drive chains never need adjusting and the battery is maintenance free.
Uses for a John Deere 320D Skid Steer rental:
- Snow ploughing and removal
- Loading and Unloading
- Lifting debris
- Pushing rocks and excess concrete
- Cutting brush
- Loading, unloading and packing filler such as gravel, sand etc.
- Levelling and flattening areas
- More uses with our Skid Steer Attachment Rentals
Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.
Dimensions
A. Length with Bucket | 10.5 ft in | 3195 mm |
B. Width Over Tires | 5.8 ft in | 1773 mm |
C. Height to Top of Cab | 6.4 ft in | 1951 mm |
D. Wheelbase | 3.5 ft in | 1074 mm |
E. Ground Clearance | 9.6 in | 244 mm |
F. Length w/o Bucket | 8.5 ft in | 2591 mm |
G. Clearance at Max Lift and Dump | 7.5 ft in | 2290 mm |
H. Reach at Max Lift and Dump | 28.1 in | 714 mm |
Engine
Make | John Deere | |
Model | 4024T | |
Gross Power | 66 hp | 49.2 kw |
Net Power | 62 hp | 46.2 kw |
Power Measured @ | 2800 rpm | |
Displacement | 149 cu in | 2.4 L |
Aspiration | Turbocharged | |
Number of Cylinders | 4 |
Operational
Operational Weight | 6435 lb | 2918.9 kg |
Fuel Capacity | 16 gal | 60.6 L |
Max Speed | 6.8 mph | 10.9 km/h |
Tire Size | 12x16.5 10 PR SKS | |
Operating Voltage | 12 V | |
Alternator Supplied Amperage | 70 amps |
Loader
Operating Load Rating | 1950 lb | 884.5 kg |
Tipping Load | 3900 lb | 1769 kg |
Breakout Force | 5500 lb | 2494.8 kg |
Bucket Capacity | 0.59 yd3 | 0.45 m3 |
Hydraulic
Pump Flow Capacity | 19 gal/min | 72 L/min |
Relief Valve Pressure | 3450 psi | 23786.9 kPa |
Dimensions
Length with Bucket | 10.5 ft in | 3195 mm |
Length w/o Bucket | 8.5 ft in | 2591 mm |
Width Over Tires | 5.8 ft in | 1773 mm |
Height to Top of Cab | 6.4 ft in | 1951 mm |
Clearance at Max Lift and Dump | 7.5 ft in | 2290 mm |
Wheelbase | 3.5 ft in | 1074 mm |
Ground Clearance | 9.6 in | 244 mm |
Reach at Max Lift and Dump | 28.1 in | 714 mm |
Turning Radius from Center - inc bucket | 78.9 in | 2004 mm |
