John Deere 326D

  Daily Weekly Monthly
Reg
$300
$1,200
$3,720
Corp
$250
$1,000
$3,100
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

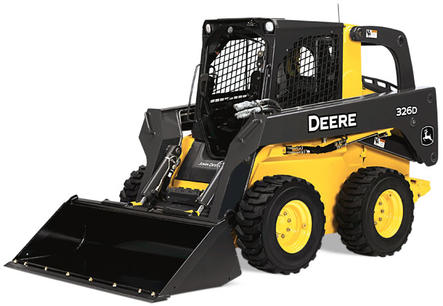

The John Deere 326D Skid Steer is easy to transport between job sites, and is also very comparable in power to other skid steers around its size. The difference of the 326D skid steer from smaller models is a noted increase in power by over 10 hp to a power output of 56.7 kW (76 hp) @ 2300 rpm.

Compact: The 326D skid steer rental is small and compact. It's approximately 63 inches wide. The 325D manoeuvres confined areas and tight spots with ease. A 60/40 weight distribution allows these skid steers the stability required to handle heavy loads, work on steeper slopes and provide front-of-machine downforce.

Powerful: The 326D Skid Steer's Turbocharged 2.4L diesel engine delivers 51.9 kW (70 hp), allowing you to carry loads up to 2,600 lbs. (Tipping Load: 5,200 lbs.) - The engine offers a net power output of 56.7 kW (73 hp) @ 2300 rpm. The 326D uses an engine that is Interim Tier 4 emission certified. A 66-liter gas tank allows the 326D skid steer rental to function longer for more efficiency and fewer fillups.

Visibility: The John Deere 326D Skid Steer's superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters). The cab has a 360-degree visibility for uninterrupted viewing of the sides, above and below. A low-sloped rear hood allows easy visibility through the rear of the 326D

Superior bucket angle: The 326D's 40-degree dump angle allows the bucket to empty all content (including sticky material). A 60/40 weight distribution throughout the machine lets it work with heavy loads on steeper terrain - this also allows for more down force in the front of the machine, vs the 70/30 weight distribution in competitor models.

Comfort: The sculptured high back seat will help you keep productivity high. It has the ability to automatically retract as well. Levers are placed in such a way so as to decrease effort required to use them. Also, all John Deere skid steers come with cargo storange for cell phones and small items, as well as a 12-volt power outlet. It also features a cupholder.

Reliability: When you rent a skid steer like the John Deere 326D you don't have to worry about performance and reliability. As an example, the 326D's heavy‐duty drive chains never need adjusting and the battery is maintenance free.

Uses for a John Deere 326D Skid Steer rental:

  • Snow ploughing and removal
  • Loading and Unloading
  • Lifting debris
  • Pushing rocks and excess concrete
  • Cutting brush
  • Loading, unloading and packing filler such as gravel, sand etc.
  • Levelling and flattening areas
  • More uses with our Skid Steer Attachment Rentals

Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rentals.

ENGINE

Emission Rating Interim Tier 4/EU Stage IIIB
Net Power, kW (hp) @ Rated rpm 51.9 (70) @ 2800
Gross power, kW (hp) 55.1 (74)
Net peak torque, N-m (lb-ft) 256 (189)
Displacement, L (cu in) 3 (186)
Engine aspiration Turbo. Intercooled
Fuel capacity, L (gal) 110.5 (29)

HYDRAULIC SYSTEM

Standard pump flow, L/min (gpm) 80 (21)
Optional high flow, L/min (gpm) 125 (33)
System pressure, kPa (psi) 23787 (3450)
Hydraulic power, kW (hp) 34 (46)
Optional high flow hydraulic power, kW (hp) 54 (72)

PERFORMANCE

SAE rated operating capacity, kg (lb) 1180 (2600)
SAE ROC with optional counterweight, kg (lb) 1249 (2750)
Tipping Load, standard, kg (lb) 2361 (5200)
Breakout Force Boom, kN (lb) 22.3 (5000)
Breakout Force Bucket, kN (lb) 34.5 (7750)
Vertical lift geometry Std

DRIVE TRAIN

Maximum Ground Speed, standard, kph (mph) 11.3 (7)
Two Speed Transmission Ground Speed, kph (mph) 17.7 (11)
Drive Chain Rating 2540 (100)
Axle Torque, Nm (lb-ft) 7725 (5680)
Tire size - Standard 12 x 16.5 10PR Extra Wall

DIMENSIONS

Length with Bucket, mm (in) 3600 (142)
Length without Bucket, mm (in) 2990 (118)
Width without Bucket, mm (in) 1840 (73)
Height to ROPS, mm (in) 2120 (83)
Height to Hinge Pin, mm (in) 3180 (125)
Dump Height, mm (in) 2540 (100)
Dump Reach, mm (in) 838 (33)
Dump Angle, degrees 45
Bucket Rollback @ ground, degrees 35
Wheelbase, mm (in) 1230 (48)
Ground Clearance, mm (in) 245 (9.7)
Angle of Departure, degrees 28

WEIGHT

SAE Operating weight, kg (lb) 3689 (8125)
