John Deere 328D
Daily | Weekly | Monthly | |
---|---|---|---|
Reg |
$300
|
$1,200
|
$3,720
|
Corp |
$250
|
$1,000
|
$3,100
|

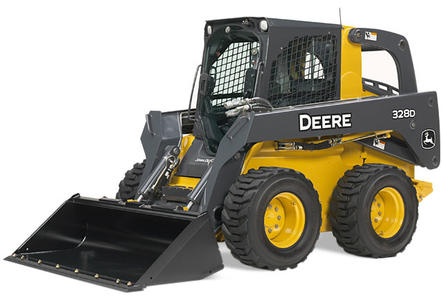

The John Deere 328D Skid Steer is easy to transport between job sites, and is also very comparable in power to other skid steers around its size. The difference of the 328D skid steer from smaller models is a noted increase in power by over 10 hp to a power output of 59.6 kW (80 hp) @ 2300 rpm.
Compact: The 328D skid steer rental is small and compact. It's approximately 77 inches wide. The 326D skid steer rental; manoeuvres confined areas and tight spots with ease. A 60/40 weight distribution allows these skid steers the stability required to handle heavy loads, work on steeper slopes and provide front-of-machine downforce.
Powerful: The 328D Skid Steer's Turbocharged 2.4L diesel engine delivers 51.9 kW (70 hp), allowing you to carry loads up to 2,800 lbs. (Tipping Load: 5,600 lbs.) - The engine offers a net power output of 59.6 kW (80 hp) @ 2200 rpm. The 328D uses an engine that is Interim Tier 4 emission certified. A 66-liter gas tank allows the 328D skid steer rental to function longer for more efficiency and fewer fillups.
Visibility: The John Deere 328D Skid Steer's superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters). The cab has a 360-degree visibility for uninterrupted viewing of the sides, above and below. A low-sloped rear hood allows easy visibility through the rear of the 328D.
Superior bucket angle: The 328D's 40-degree dump angle allows the bucket to empty all content (including sticky material). A 60/40 weight distribution throughout the machine lets it work with heavy loads on steeper terrain - this also allows for more down force in the front of the machine, vs the 70/30 weight distribution in competitor models.
Comfort: The sculptured high back seat will help you keep productivity high. It has the ability to automatically retract as well. Levers are placed in such a way so as to decrease effort required to use them. Also, all John Deere skid steers come with cargo storange for cell phones and small items, as well as a 12-volt power outlet. It also features a cupholder.
Reliability: When you rent a skid steer like the John Deere 328D you don't have to worry about performance and reliability. As an example, the 328D's heavy‐duty drive chains never need adjusting and the battery is maintenance free.
Uses for a John Deere 328D Skid Steer rental:
- Snow ploughing and removal
- Loading and Unloading
- Lifting debris
- Pushing rocks and excess concrete
- Cutting brush
- Loading, unloading and packing filler such as gravel, sand etc.
- Levelling and flattening areas
- More uses with our Skid Steer Attachment Rentals
Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.
ENGINE
Emission Rating | Tier 3 / EU Stage 3A |
Net Power, kW (hp) @ Rated rpm | 59.6 (80) @ 2200 |
Gross power, kW (hp) | 63.4 (85) |
Net peak torque, N-m (lb-ft) | 300 (221) |
Displacement, L (cu in) | 3 (186) |
Engine aspiration | Turbo. Intercooled |
Fuel capacity, L (gal) | 110.5 (29) |
HYDRAULIC SYSTEM
Standard pump flow, L/min (gpm) | 80 (21) |
Optional high flow, L/min (gpm) | 132 (35) |
System pressure, kPa (psi) | 23800 (3450) |
Hydraulic power, kW (hp) | 34 (46) |
Optional high flow hydraulic power, kW (hp) | 57 (77) |
PERFORMANCE
SAE rated operating capacity, kg (lb) | 1271 (2800) |
SAE ROC with optional counterweight, kg (lb) | 1339 (2950) |
Tipping Load, standard, kg (lb) | 2542 (5600) |
Breakout Force Boom, kN (lb) | 2.27 (5000) |
Breakout Force Bucket, kN (lb) | 4.68 (10300) |
Vertical lift geometry | Yes |
DRIVE TRAIN
Maximum Ground Speed, standard, kph (mph) | 11.3 (7) |
Two Speed Transmission Ground Speed, kph (mph) | 19.3 (12) |
Drive Chain Rating | 2540 (100) |
Axle Torque, Nm (lb-ft) | 8480 (6235) |
Tire size - Standard | 14 x 17.5 12PR Extra Wall |
DIMENSIONS
Length with Bucket, mm (in) | 3600 (142) |
Length without Bucket, mm (in) | 2990 (118) |
Width without Bucket, mm (in) | 1950 (77) |
Height to ROPS, mm (in) | 2150 (85) |
Height to Hinge Pin, mm (in) | 3220 (127) |
Dump Height, mm (in) | 2570 (101) |
Dump Reach, mm (in) | 796 (31.3) |
Dump Angle, degrees | 45 |
Bucket Rollback @ ground, degrees | 35 |
Wheelbase, mm (in) | 1230 (48) |
Ground Clearance, mm (in) | 295 (11.6) |
Angle of Departure, degrees | 31 |
WEIGHT
SAE Operating weight, kg (lb) | 3814 (8400) |
