John Deere 332D
Daily | Weekly | Monthly | |
---|---|---|---|
Reg |
$290
|
$1,150
|
$3,400
|
Corp |
$270
|
$1,150
|
$2,900
|

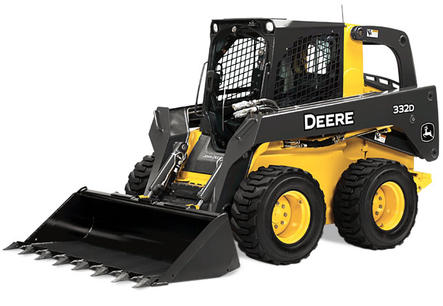

The John Deere 332D Skid Steer is easy to transport between job sites, and is also very comparable in power to other skid steers around its size. The difference of the 332D skid steer from smaller models is a noted increase in power by over 10 hp to a power output of 66.7 kW (89 hp) @ 2400 rpm.
Compact: The 332D skid steer rental is small and compact. It's approximately 78 inches wide. The 332D manoeuvres confined areas and tight spots with ease. A 60/40 weight distribution allows these skid steers the stability required to handle heavy loads, work on steeper slopes and provide front-of-machine downforce.
Powerful: The 332D Skid Steer's Turbocharged 2.4L diesel engine delivers 51.9 kW (70 hp), allowing you to carry loads up to 2,600 lbs. (Tipping Load: 5,200 lbs.) - The engine offers a net power output of 56.7 kW (73 hp) @ 2300 rpm. The 332D uses an engine that is Interim Tier 4 emission certified. A 66-liter gas tank allows the 332D skid steer rental to function longer for more efficiency and fewer fillups.
Visibility: The John Deere 332D Skid Steer's superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters). The cab has a 360-degree visibility for uninterrupted viewing of the sides, above and below. A low-sloped rear hood allows easy visibility through the rear of the 332D.
Superior bucket angle: The 332D's 40-degree dump angle allows the bucket to empty all content (including sticky material). A 60/40 weight distribution throughout the machine lets it work with heavy loads on steeper terrain - this also allows for more down force in the front of the machine, vs the 70/30 weight distribution in competitor models.
Comfort: The sculptured high back seat will help you keep productivity high. It has the ability to automatically retract as well. Levers are placed in such a way so as to decrease effort required to use them. Also, all John Deere skid steers come with cargo storange for cell phones and small items, as well as a 12-volt power outlet. It also features a cupholder.
Reliability: When you rent a skid steer like the John Deere 332D you don't have to worry about performance and reliability. As an example, the 332D's heavy‐duty drive chains never need adjusting and the battery is maintenance free.
Uses for a John Deere 332D Skid Steer rental:
- Snow ploughing and removal
- Loading and Unloading
- Lifting debris
- Pushing rocks and excess concrete
- Cutting brush
- Loading, unloading and packing filler such as gravel, sand etc.
- Levelling and flattening areas
- More uses with our Skid Steer Attachment Rentals
Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.
Dimensions
A. Length with Bucket | 11.5 ft in | 3518 mm |
B. Width Over Tires | 6.4 ft in | 1958 mm |
C. Height to Top of Cab | 6.9 ft in | 2106 mm |
D. Wheelbase | 4 ft in | 1234 mm |
E. Ground Clearance | 9.5 in | 241 mm |
F. Length w/o Bucket | 9.6 ft in | 2934 mm |
G. Clearance at Max Lift and Dump | 8.5 ft in | 2591 mm |
H. Reach at Max Lift and Dump | 32 in | 813 mm |
Engine
Make | John Deere | |
Model | 5030HW | |
Gross Power | 91 hp | 67.9 kw |
Net Power | 85 hp | 63.4 kw |
Power Measured @ | 2800 rpm | |
Displacement | 186 cu in | 3 L |
Number of Cylinders | 5 | |
Aspiration | turbocharged |
Operational
Operational Weight | 9160 lb | 4154.9 kg |
Fuel Capacity | 24 gal | 90.8 L |
Max Speed | 11.2 mph | 18 km/h |
Tire Size | 14x17.5 14 PR | |
Operating Voltage | 12 V | |
Alternator Supplied Amperage | 70 amps |
Laoder
Operating Load Rating | 3175 lb | 1440.2 kg |
Tipping Load | 6350 lb | 2880.3 kg |
Breakout Force | 11600 lb | 5261.7 kg |
Bucket Capacity | 0.65 yd3 | 0.5 m3 |
Hydraulic
Pump Flow Capacity | 24 gal/min | 91 L/min |
Relief Valve Pressure | 3100 psi | 21373.7 kPa |
Dimensions
Length with Bucket | 11.5 ft in | 3518 mm |
Length w/o Bucket | 9.6 ft in | 2934 mm |
Width Over Tires | 6.4 ft in | 1958 mm |
Height to Top of Cab | 6.9 ft in | 2106 mm |
Clearance at Max Lift and Dump | 8.5 ft in | 2591 mm |
Wheelbase | 4 ft in | 1234 mm |
Ground Clearance | 9.5 in | 241 mm |
Reach at Max Lift and Dump | 32 in | 813 mm |
Turning Radius from Center - inc bucket | 83.7 in | 2126 mm |
