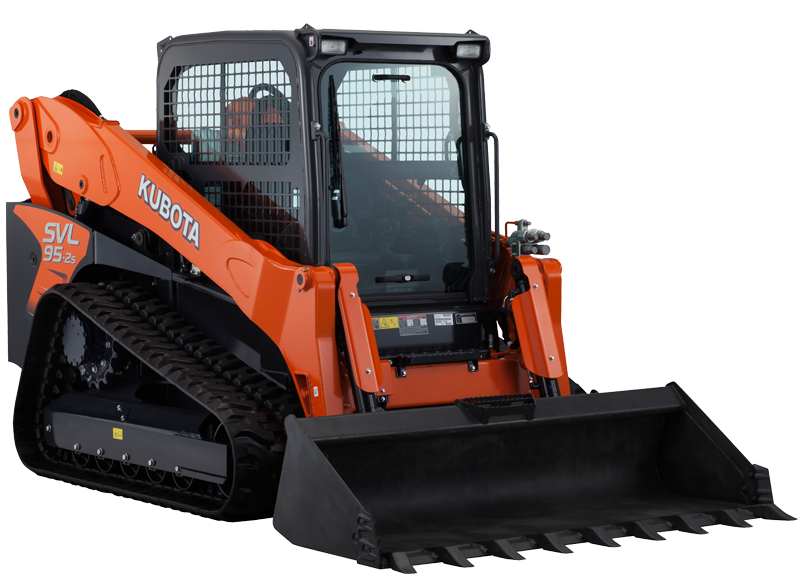

Kubota SVL 95
Daily | Weekly | Monthly | |
---|---|---|---|
Reg |
$450
|
$1,890
|
$5,400
|
Corp |
$425
|
$1,750
|
$4,850
|
Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for a commercial or residential project? If so, consider renting the Kubota SVL 95 compact track loader. If you're looking for amazing stability on slopes and superior lifting ability, a the larger Kubota SVL 95 rental might be your best bet.
Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?
- Compact Track Loaders (Rubber Track Skid Steer) provide superior stability and are excellent for working on slopes with uneven terrain or surfaces with loose gravel, mud or soft ground. (Places a skid steer would likely get stuck).
- The SVL 95 tracks distribute the loader's weight evenly (at 4.5 psi) minimizing ground pressure. Result? Minimal damage to sensitive surfaces and under-structure such as soil, lawns, and pipes.
- No flat tires...
Power: The SVL95's 4 cylinder engine delivers 96.4 HP allows you to carry loads of up to 3,200 lbs. or 1451 kg (vs. 2,300 lbs. for the Kubota SVL 75 Compact Track Skid Steer Loader Rental). The SVL 95'sTipping Load is 9,143 lbs. (vs. 6,570 lbs. for the Kubota SVL 75).
Visibility: Important sight lines are all visible, including the edge of the bucket
Superior dump angle: The vertical lift path of the loader arms provides longer reach when dumping at full lift height. It also prevents you from repositioning when raising the loader close to a truck.
Comfort: The Kubota SVL95's sculptured high back seat will help you keep productivity high.
What can you do with a Kubota SVL 95 Compact Track Loader Rental (Rubber Track Skid Steer Rentals)?
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Snow removal
- Remove debris from construction sites
- Fence pole installation
- Sod removal
- Clear land and load rubbish bins
- Plant trees
- Remove stumps
- Load pickup trucks, hoppers and spreaders
- Grade and level driveways
- Load sand and gravel
- Brush cutting
We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island region: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Squamish, Whistler, Nanaimo, Victoria. See our Delivery rates for more details.
Specification | Detail | ||
---|---|---|---|
Model | |||
Model Name | SVL95-2s | ||
Engine | |||
Make | Kubota | ||
Model | V3800CR-TIE F4 | ||
Type | Diesel | ||
EPA Rating | Tier 4 Final | ||
Aspiration | Turbocharged | ||
Cylinders | Four | ||
Bore and stroke | 3.94 in. (100 mm) x 4.72 in. (120 mm) | ||
Displacement | 230.0 cu. in. (3769 cc) | ||
Horsepower | |||
Engine gross @ rpm | 96.4 HP (71.9 kW) @ 2400 RPM | ||
Injection type | Direct | ||
Cooling system | Liquid | ||
Cold weather start aid | Standard | ||
Throttle location (s) | Hand & foot | ||
Air filter | Dual element | ||
Oil filter | Spin-on type | ||
Fuel System | |||
Fuel type | Diesel | ||
Fuel / water separator | Standard | ||
Fluid Capacities | |||
Fuel tank capacity | 28.8 gal. (109 L) | ||
Capacity | Hydraulics: 10.1 gal. (38.2 L) | ||
Chassis, Axle and Brakes | |||
Bucket breakout force | 7961 lbf. (3611 kgf) | ||
Chassis type | Rigid mount undercarriage | ||
Parking brake | Wet disc | ||
Drive Train/Transmission | |||
Number of ranges | Two | ||
Travel Speed | |||
Low range | |||
None | 5.0 mph. (8.0 km/h) | ||
High range | |||
None | 7.3 mph (11.7 km/h) | ||
Drive Train/Transmission | |||
Maximum traction force | 12,178 lbf. (5524 kgf) | ||
Ground contact pressure | 4.5 psi. | ||
Hydraulic System | |||
Auxiliary hydraulic flow | 40.0 gpm (152 l/min) | ||
Oil cooler | Standard | ||
Lift arms | Vertical lift path | ||
Electrical | |||
Block heater | Optional | ||
Gauges | Fuel, Temperature | ||
Lights | 2 Front & rear working | ||
Optional lights | Beacon, Strobe, Tail-light | ||
Dimensions | |||
Operating weight | |||
None | 11,574 lbs. (5249.88 kg) | ||
Overall height | |||
Top of ROPS | 83.3 in. (2116 mm) | ||
Overall length | 154.6 in. (3929 mm) | ||
Overall width | 77.2 in. (1962 mm) | ||
Length of track on ground | 65.6 in. (1667 mm) | ||
Ground clearance | 11.5 in. (293 mm) | ||
Angle of departure | 31º | ||
Tracks | |||
Overall width | |||
Width | 17.7 in. (450 mm) | ||
30 ° angle shaped track frame | Standard | ||
Safety Equipment | |||
ROPS | Certified cab | ||
FOPS | Certified cab | ||
Seat belts | Standard | ||
Parking brakes | Wet disc | ||
Grab handles for entry / exit | Standard | ||
Back-up alarm | Standard | ||
Safety starting system | Standard | ||
Options | |||
Cab | Enclosed, pressurized | ||
3” retractable seatbelt | Yes | ||
Block heater | Yes | ||
Hydraulic quick connect of attachments | Yes | ||
Attachments; buckets, auger | Yes | ||
Hydraulic breaker | Yes | ||
Loader Specifications | |||
Lift arms | Vertical lift path | ||
Rated flow | 23.1 gpm. (87.6 l/min) | ||
Maximum pressure | 3553 psi. | ||
(A) Max. Lift height to bucket pivot pin | |||
Standard | 128.5 in. (3264 mm) | ||
(D) Reach at max. Lift height | |||
Standard | 40.7 in. (1035 mm) | ||
(E) Max. Dump angle | |||
Standard | 43º | ||
Loader Dimensional Specifications | |||
(G) Bucket roll-back angle | |||
At carry position | 27º | ||
Loader Operational Specifications | |||
Tipping Load. 35% | 3200 lbs. (1451 kg) | ||
Tipping Load. straight | 9143 lbs. (4147 kg) | ||
Loader Bucket Specifications | |||
Standard bucket | |||
Width | 80 in. (2032 mm) |
