Komatsu PC 228 USLC-3
| Daily | Weekly | Monthly | |
|---|---|---|---|
| Reg |
$725
|
$2,900
|
$9,300
|
| Corp |
$600
|
$2,500
|
$8,500
|

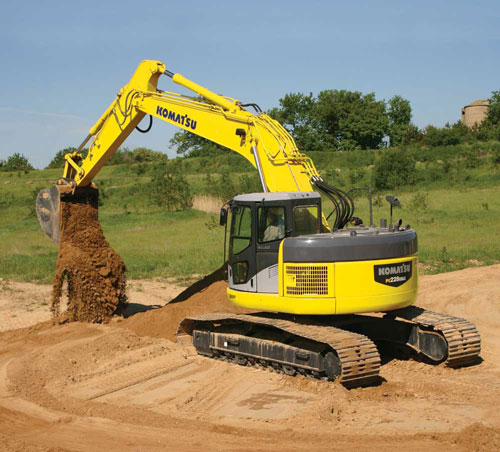

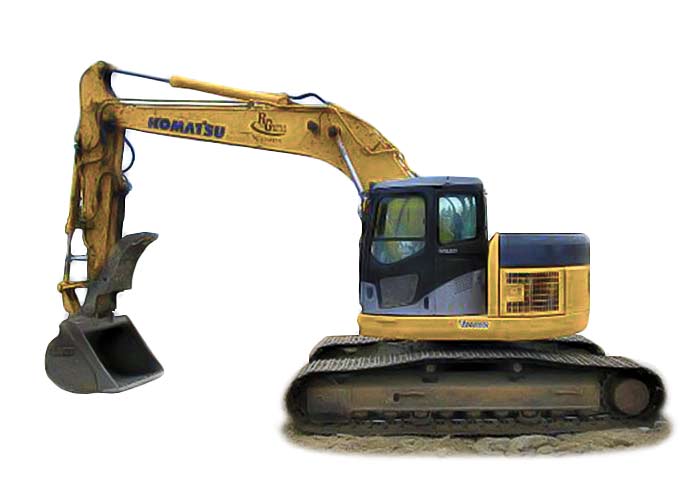

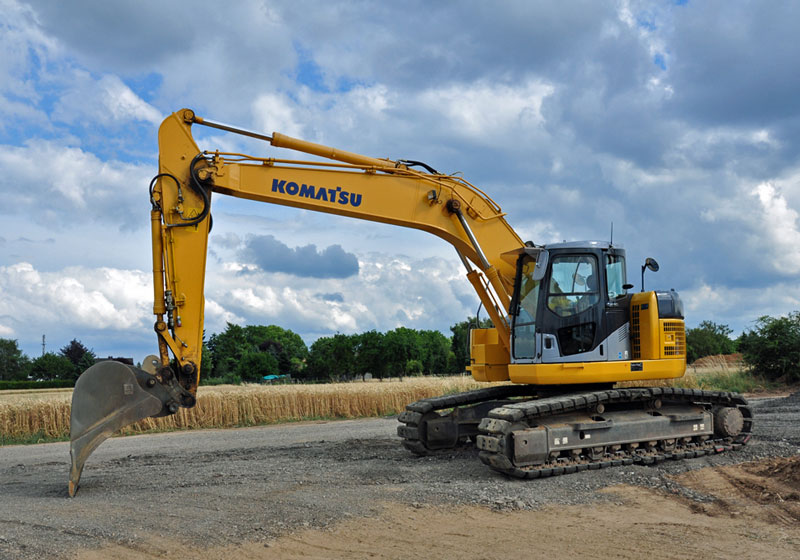

Komatsu's PC 228 USLC Hydraulic Excavator Rental
First Look: Make - Komatsu, Model - PC 228 USLC. Reach of 31.7 ' and max dig depth of 21.8 '. You can also rent our Komatsu PC 200 LC - 8 excavator that is a similar size and with a conventional tail swing.
Short Tailswing Profile: Tailswing Radius: 1680 mm (5'6")
Power: 110 kW (148 HP) net. Engine is EPA Certified.
Dig Depth & Reach: Dig depth of 21.8 feet and a reach of 31.7 feet
Dimensions: 9 ft 2 inches wide, 28 ft 7 inches in length.
Operating Weight: With standard equipment the PC 228 USLC rental weighs 24,675 kg (54,405 lb). Weight varies depending on attachments.
Visibility: 9 ft 9 inches wide, and 7 ft 6 inches with improved visibility.
Excavator Rental for Demolition: When renting a Komatsu PC 228 USLC, we give you the option to equip it with a hydraulic thumb and full cab guarding for demolition purposes.
You can use a Komatsu PC 228 USLC Excavator Rental for:
- Breaking down concrete with an attachment
- Excavating pipes and circuitry
- Loading gravel, sand, etc
- Trench digging and backfilling
- Demolition and debris removal
- Foundatiion digging
Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.
Engine
| Model | Komatsu SAA6D107E-1* | |
| Type | Water-cooled, 4-cycle, direct injection | |
| Aspiration | Turbocharged and air-to-air aftercooled | |
| Number of cylinders | 6 | |
| Bore | 4.21" | 107 mm |
| Stroke | 4.88" | 124 mm |
| Piston displacement | 408 in³ | 6.69 ltr |
| Power rating | ||
| Gross (SAEJ1995) | 155 HP @ 2000 rpm | 116 kW @ 2000 rpm |
| Net (ISO 9249/SAEJ1349) | 148 HP @ 2000 rpm | 110 kW @ 2000 rpm |
| Fan drive type | Mechanical | |
| Governor | All-speed control, electronic | |
| *EPA Tier 3 and EU Stage 3A emissions certified. |
Hydraulics
| Type | HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure compensated valves | |
| Number of selectable working modes | 5 | |
| Main pump | Variable-capacity piston pump. | |
| Pumps for | Boom, arm, bucket, swing, and travel circuits. | |
| Maximum flow | 116 u.s. gal/min | 439 ltr/min |
| Supply for control circuit | Self-reducing valve | |
| Hydraulic motors: | ||
| Travel | 2 x axial piston motor with parking brake | |
| Swing | 1 x axial piston motor with swing holding brake | |
| Relief valve setting: | ||
| Implement circuits | 5,400 psi | 37.3 MPa 380 kgf/cm² |
| Travel circuits | 5,400 psi | 37.3 MPa 380 kgf/cm² |
| Swing circuits | 4,120 psi | 28.4 MPa 290 kgf/cm² |
| Pilot circuit | 470 psi | 3.2 MPa 33 kgf/cm² |
| Hydraulic cylinders: | ||
| (Number of cylinders – bore x stroke x rod diameter) | ||
| Boom / 2 | 4.7" x 54.5" x 3.3" | 120 mm x 1385 mm x 85 mm |
| Arm / 1 | 5.3" x 58.7" x 3.7" | 135 mm x 1490 mm x 95 mm |
| Bucket / 1 | 4.5" x 44.1" x 3.2" | 115 mm x 1120 mm x 80 mm |
Swing System
| Drive method | Hydrostatic | |
| Swing reduction | Planetary gear type, double reduction | |
| Swing circle lubrication | Grease-bathed | |
| Swing lock | Mechanical disc brake | |
| Swing speed | 11.0 rpm | |
| Swing torque | 48,124 ft lbs | 6656 kg.m |
Drive & Brakes
| Steering control | Two-lever with pedals | |
| Drive method | Hydrostatic | |
| Maximum drawbar pull | 45,410 lb | 202 kN 20600 kgf |
| Travel motor | Axial piston motor, in-shoe design | |
| Reduction system | Planetary gear type, double reduction | |
| Gradeability | 70%, 35° | |
| Maximum travel speed (Auto-Shift): | ||
| High | 3.4 mph | 5.5 km/h |
| Mid | 2.5 mph | 4.1 km/h |
| Low | 1.9 mph | 3.0 km/h |
| Service brake | Hydraulic lock | |
| Parking brake | Mechanical disc brake |
Undercarriage
| Center frame | X-frame | |
| Track frame | Box-section | |
| Seal of track | Sealed track | |
| Track adjuster | Hydraulic | |
| Number of shoes (each side): | 49 | |
| Number of carrier rollers (each side): | 2 | |
| Number of track rollers (each side): | 9 |
Service Refill Capacities
| Fuel tank | 84.5 U.S. gal | 320 ltr |
| Coolant | 5.5 U.S. gal | 21.0 ltr |
| Engine | 6.1 U.S. gal | 23.1 ltr |
| Final drive, each side | 1.4 U.S. gal | 5.2 ltr |
| Swing drive | 1.9 U.S. gal | 7.1 ltr |
| Hydraulic tank | 33.3 u.s. gal | 126 ltr 33.3 u.s. gal |
Operating Weight (approx)
Operating weight, including 5700 mm / 18'8" one-piece boom, 2925 mm / 9'7" arm, SAE heaped 0.80 m³ / 1.05 yd³ backhoe bucket, operator, lubricant, coolant, full fuel tank, and the standard equipment.
| Shoes | Operating Weight | Ground Pressure |
| 600 mm 24" |
24130 kg 53,195 lb |
0.51 kg/cm² 7.28 psi |
| 700 mm 28" |
24395 kg 53,785 lb |
0.44 kg/cm² 6.21 psi |
| 800 mm 31.5" |
24675 kg 54,405 lb |
0.39 kg/cm² 5.62 psi |
